Code:

AWOH405015 (v. 1.0)

Name:

Metal enclosure with mounting plate AWOH405015 IP66 400x500x150

Dimensions 400 x 500 x 150 [+/-2 mm]
Mounting plate sheet, 350 x 465 [+/-2 mm]

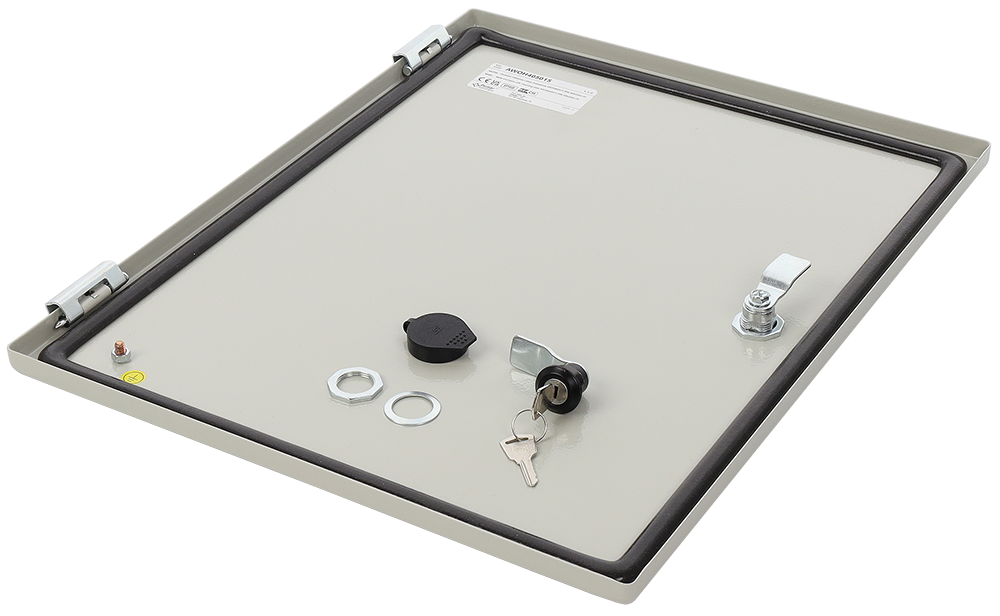

Closing 1 x double-bit lock
- Lock AWOH-K1 (repeatable code) assembly possible
- Lock blanking panel AWOH-Z1 assembly possible
Installation surface-mounted
Material cold-rolled steel SPCC, 1.2mm, RAL7035 (grey), metallic
Protection grade EN60529 IP 66
Warranty 2 years
Notes - changeable door – right or left
