Code:

AWO483 (v. 1.4)

Name:

Casing DVR/MEDIUM

Destination CCTV recorders

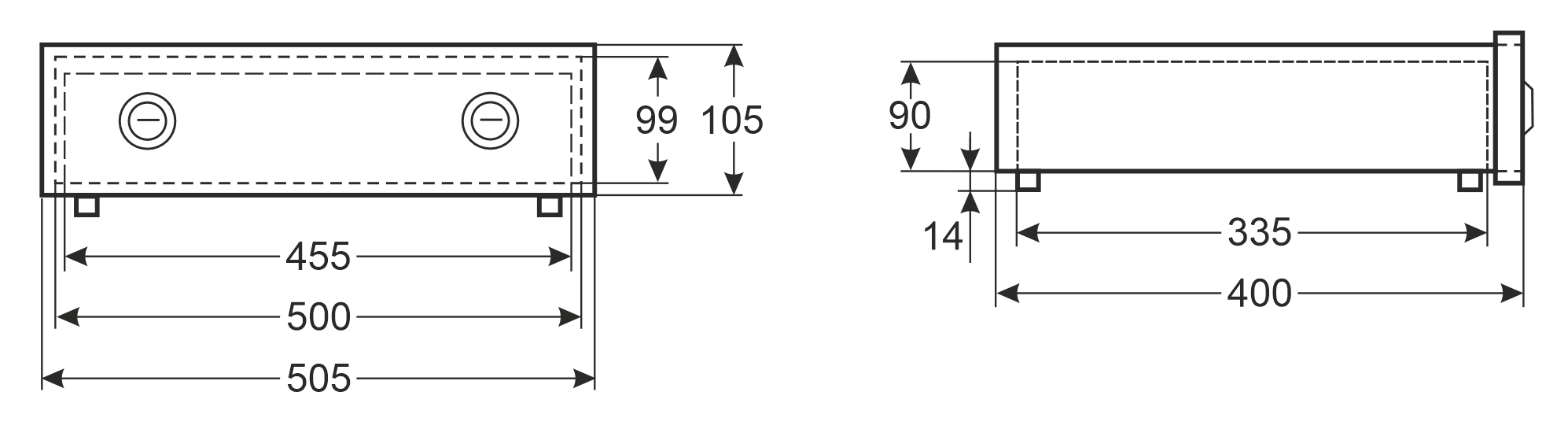

Dimensions 500 x 99 x 400 [+/-2 mm]
distance from surface: 14 mm
Dimensions of recorder space 455 x 90 x 335 [+/-2 mm]
horizontal installation
Protections tamper – opening of enclosure
Closing lock (2xMR008, various code)
Housing construction is compliant with requirements of General Data Protection Regulation GDPR, as personal data must be protected and stored securely
Installation standard
Material steel DC01, 1mm, RAL9003 (white), metallic
Protection grade EN60529 IP 20
Warranty 2 years
Notes - lossibility to install ARAW45 fan (optional)
- to suspend enclosure (e.g. under desk top surface), required grip AWO483BR
